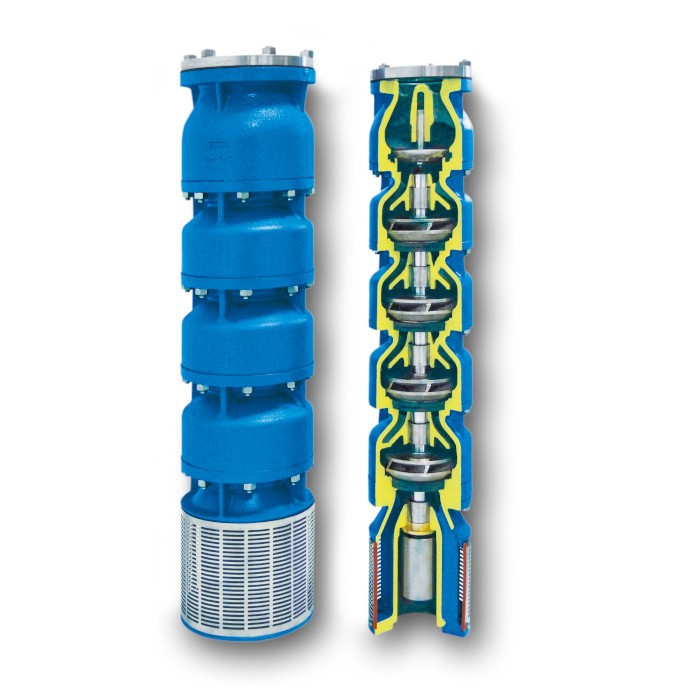

pompe-centrifughe-semiassiali

S12 10”

£0.00

Download complete catalog

TECHNICAL SPECIFICATIONS

– Flow body, diffusers, impeller and suction bracket in cast iron G25 of high strength.
– Suction grid, cable protection and stainless steel coupling.
– Bushing bearings and wear rings in anti-sand rubber.
– Shaft in C40 steel with hard Chrome coating.
– Maximum temperature of the liquid to be pumped: 25°C.
– Maximum quantity of sand present in the water: 50g/m3.
– Maximum closed-passage operating time: 4min.
– Maximum pressure in varied movement: 40 BAR.
– Direction of rotation: anti-clockwise, seen from delivery orifice.
