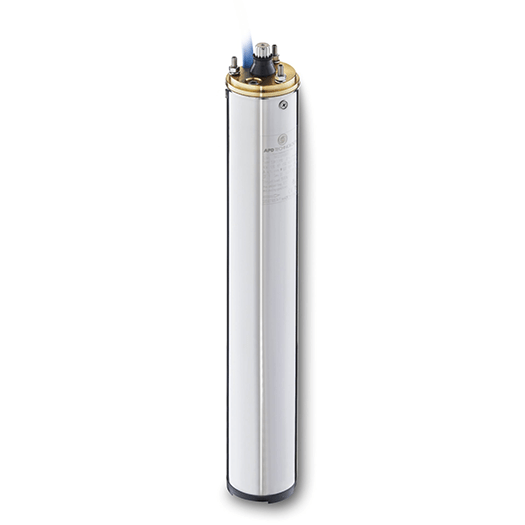

TECHNICAL SPECIFICATIONS
– Pressed brass coupling flange 3”.
– Terminal of motor shaft in AISI 420.
– NEMA standard couplings.
– Outer shell of AISI 304.
– Stud-bolt, washers and nuts in AISI 304.
– Axial load: 1500N.
– Flat cable 4×1,0 mm2 dimensions 13,0×4,6 mm.
– Motor cable length: 1,4mt (0,37 kW – 0,55 kW). 1,8mt (0,75 kW – 1,10 kW).
– Protection IP 68, Insulation class F.
– Single-phase power: 0,37 kW – 1,1 kW.
– Three-phase power; 0,37 kW – 1,1 kW.
– Single-phase voltages: 220V-230V/50Hz.
– Three-phase voltages: 220V-415V/50Hz, 460V/60Hz.
– Voltage tolerance: ± 10%.
– Maximum number of starts per hour: 30.
– Maximum ambient temperature: 35°C.
Water pH: 6,5 – 8,0.
– Minimum cooling speed: 8cm/sec.
– Maximum immersion depth: 200mt.
– Installation: vertical/horizontal.
