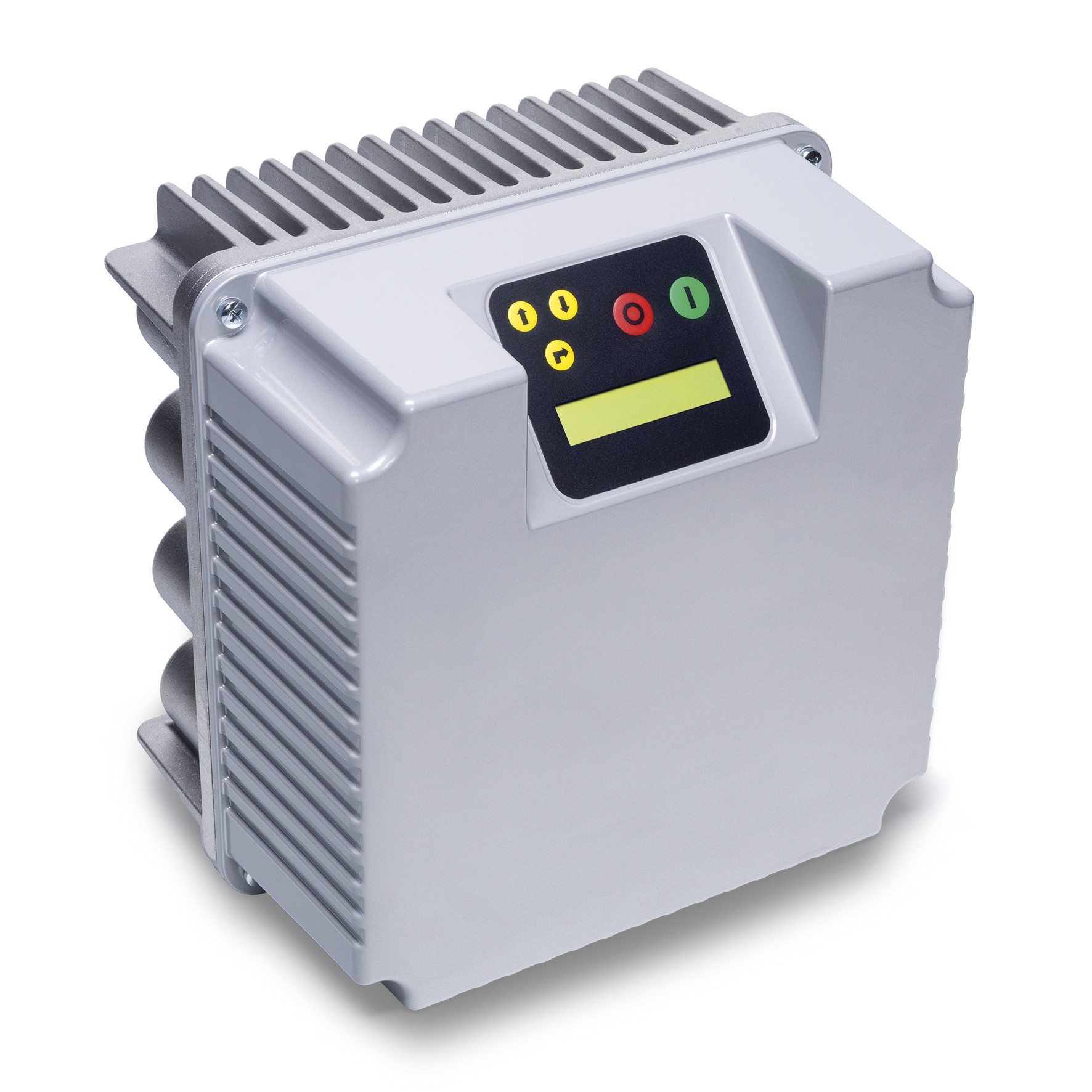

SOLAR MPS 01

SOLAR MPS 50Hz/60Hz

£0.00

Download complete catalog

TECHNICAL SPECIFICATIONS

– Working ambient temperature: from -10 to 50°C.
– Maximum altitude at full load: 1000 m.
– Protection: IP65 (NEMA 4) (Size 2) IP54 (NEMA 12) (Size 3, 4).
– Configurable digital outputs N.A. or N.C.: 1 – Motor run signal. 2 – Alarm signal.
– Analog input for pressure or flow sensor
– Analog inputs, (10 or 15 VDC): 1 – 4-20 mA 2 – 4-20 mA 3 – 4-20 mA o 0-10 VDC 4 – 4-20 mA o 0-10 VDC.

– 4 digital inputs, configurable N.A. or N.C. for starting and stopping of motor.

– MUDBUS RTU RS485 Bluetooth® SMRT (4.0).
– Protections:
– Lack of water, happens monitoring the power factor of the pump and it does not therefore require the use of probes.
– Overvoltage and overtemperature.
